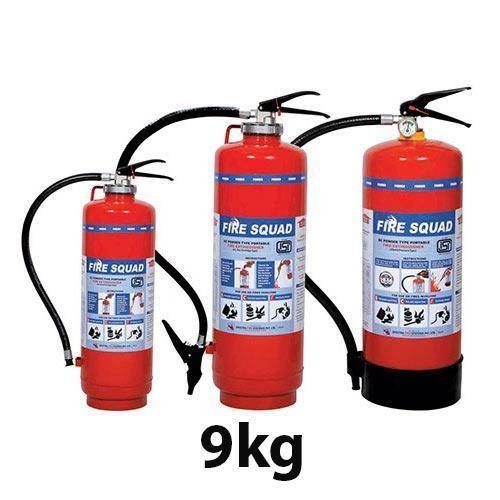

Fire Extinguisher ( Map 90)

Fire Class	B, C, A
Discharge Range (meters)	>2
Maximum Service Pressure (Bar)	15
Range	2 Meter
Weight (kilogram)	8.5
Material	MAP 90
Color	RED
Discharge Time (Second)	18 seconds

Indian Standard.

SPECIFICATION FOR GALVANIZED MILD STEEL FIRE BUCKET.

Third Reprint SEPTEMBER 2009.

UDC 614.843.5 [669.141.24 : 669.586]

Product Description

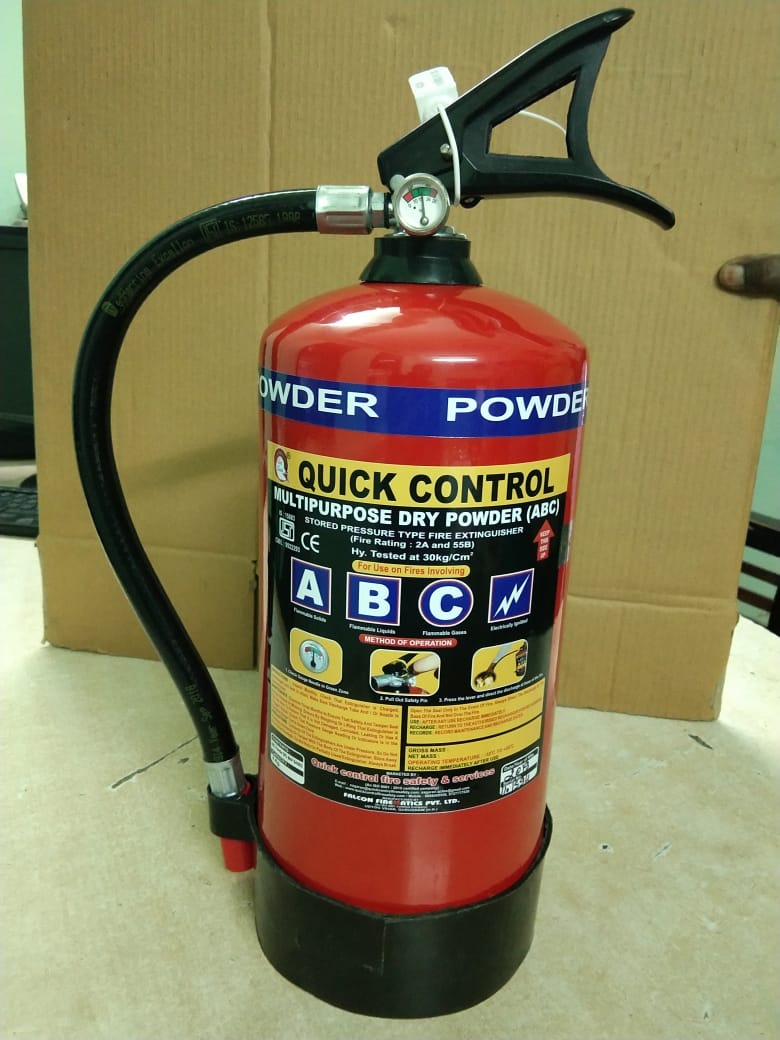

QUICK CONTROL BRAND Fire Extinguisher

FIRE HIT)MonoAmmoniumPhosphate–90%,PowderIS:

14609, Stored Pressure Type, Pressure Gauge, Controllable discharge mechanism, Squeeze grip, wall fixing bracket, Range minimum 4 meters, Discharge Time 13 seconds, Service Pressure: 15-19 bar, Hydraulic Test Pressure: 35 bar, Operating temperature: -10 degree to + 55 degree C, Body Burst Pressure Minimum 55 bar, Works on all class of Fire (ABC & E) confirming to IS: 15683 with ISI mark, Fire Rating

3A& 34 B.
